'6000 Series' Cylindrical LEVERSET 'DDA' - STOREROOM (85mm Rose / 70mm BSet) *Satin Chrome*

Description

PRODUCT DESCRIPTION

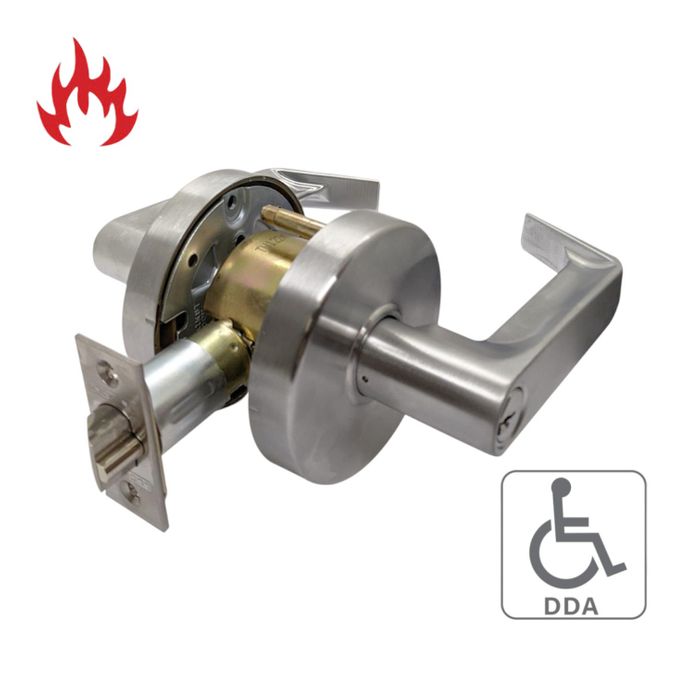

The LOCKTON Art. EU6062 'Storeroom' Leverset.

PRODUCT SPECIFICATION

• Tested to meet Grade 2 (Heavy Duty) specification of 400,000 cycles
• Design for Access and mobility: This product complies with the Disability Access requirements of AS1428.1-2009 (DDA)
• 70mm Backset, Cylindrical Latch
• 1 x 6 pin C4 PD Cylinder
• 2 x Keys Per Lockset
• Accepts most restricted key systems
• Door thickness - 35mm to 45mm
• Door Prep - 54mm diameter cross bore
• Assembly Screw Size: M8 x 40mm
• Rose Diameter: 85mm
• Standard "T" Strike'
• Cylinder Profile: C4 (LW5)
• 10 Year Warranty
