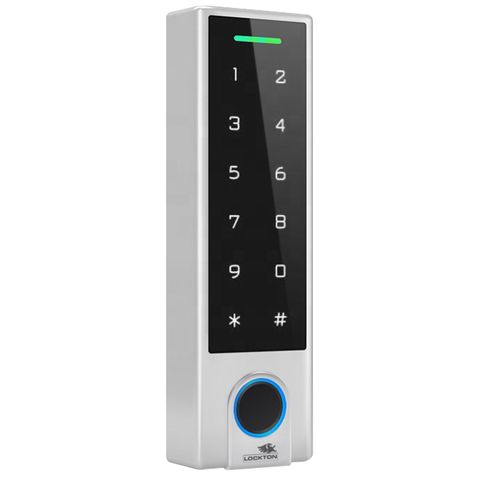

'E-Series' SMART KEYPAD - Narrow - With Fingerscan

Description

PRODUCT DESCRIPTION

LOCKTON 'E-Series' Narrow Smart Keypad with Fingerprint, Digital PIN Code, RFID Tag and Mobile App Functionality.

• The stand-alone design and ease of installation will open more opportunities on job sites
• This Smart Keypad comes with a built-in single door controller, saving costs on material, labour and additional components
• Designed with a market standard footprint to upgrade smart functionality on existing Keypads and Readers
• Compatible with the majority of electric strikes, maglocks and other access control mediums on the market
• IP66 Rating on Keypad means it can be installed in almost any application
• Easily Use and Manage the keypad via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
• More Smart Keypads / Doors can be added using the TTLock platform
• Add up to 1350 x Users
• Fingerprint sensing area is ergonomically located at the bottom of the keypad to naturally read a thumb print for quick entry
• Optional G2 & G3 Gateway accessories allow for remote access and control of the keypad via internet

Supplied with:

• 1 x Wall Mouting Kit (4 x Screws, 4 x Wall Plugs & 1 x Allen Key)
• 1 x IP66 Kit (45g Elec. Wiring Sealant)
• 1 x Instruction Manual
• 2 x LOCKTON E-Series RFID Tags

PRODUCT SPECIFICATION

• Finish: Silver Body w/ Black Keypad & Sensing Areas
• Dimensions (W x H x D): 43.5 x 148 x 22mm
• Supporting Systems: Android 4.3 / iOS 7.0 & Above
• Stand-by Current: 84mA
• Operating Current: ≈ 150mA
• Power Supply: DC 12V
• IP Rating: IP66
• RFID Tag Capacity: 1000
• PIN Code Capacity: 250
• Fingerprint Capacity: 100
• Bluetooth E-Keys: Unlimited
• 3 Year Warranty
