Bench DRILL MACHINE (TBM-220)

Description

PRODUCT DESCRIPTION

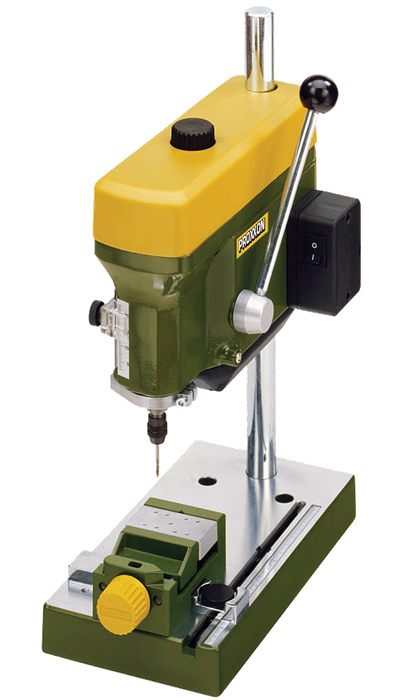

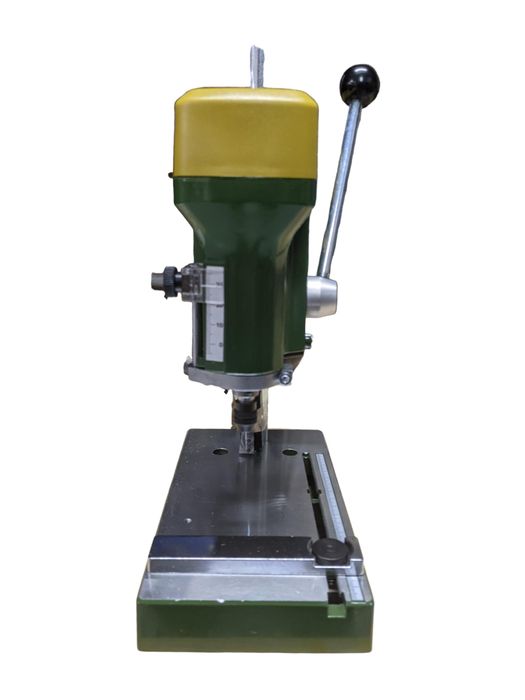

PROXXON Bench Drill Press (TBM-220)

Plane-milled worktable of die-cast aluminium (220 x 120 mm) with adjustable fence and scale as well as threaded holes for securing the MICRO compound table KT 70.

Solid steel column (20 x 340 mm). Adjustable fence with scale. Solid, hard-chromed steel column, 340 mm high, 20 mm diameter.

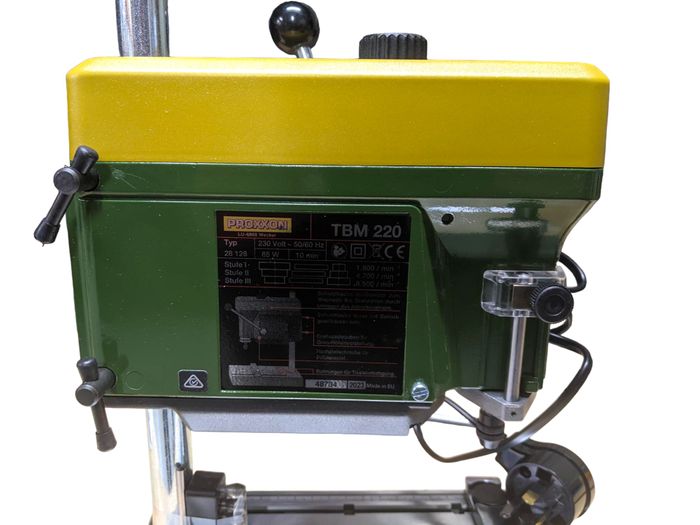

Super stable die-cast head with VDE approved 220 - 240V motor. Very quiet and of long life expectancy type.

Power transmission by aluminium pulleys and flat belt. Three spindle speeds (triple torque at low speeds).

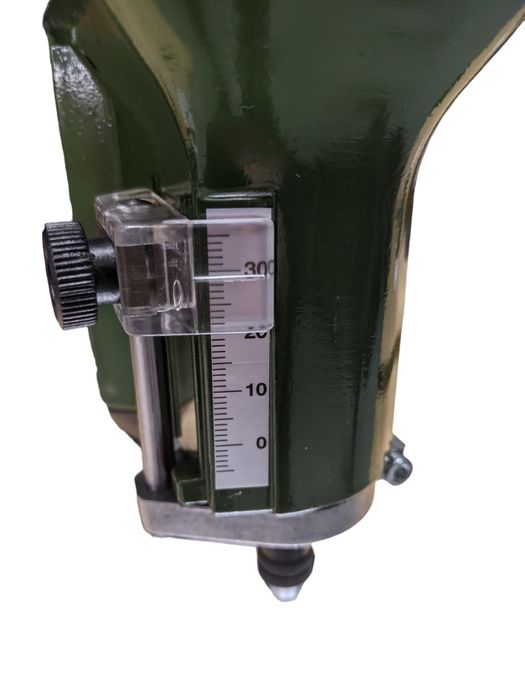

Feed lever with adjustable depth scale.

Supplied with:

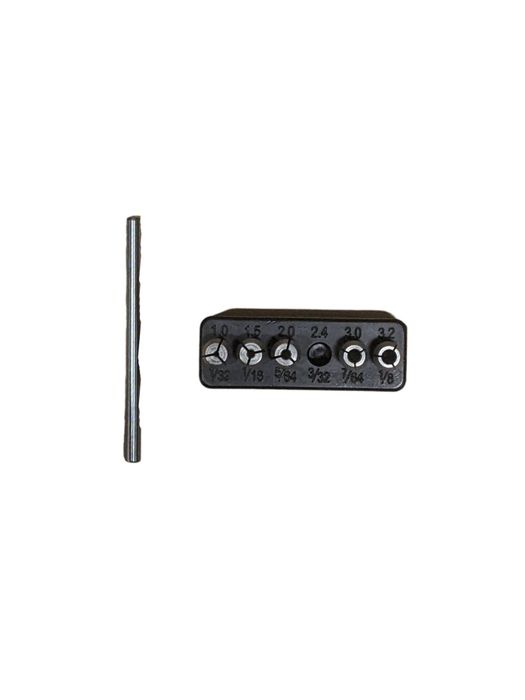

• 6 x Triple slit precision collets for shaft sizes 1 - 1.5 - 2 - 2.4 - 3 - 3.2 mm

PRODUCT SPECIFICATION

• Power: 230V (85W)
• Spindle Speed: 1,800, 4,700 & 8,500 rpm
• Weight: 3.3 kg
