LOCKTON
'165 Series' DOOR CLOSER - Rack & Pinion - (2-6)
Art ID:
SGDC165-S
Description
PRODUCT DESCRIPTION

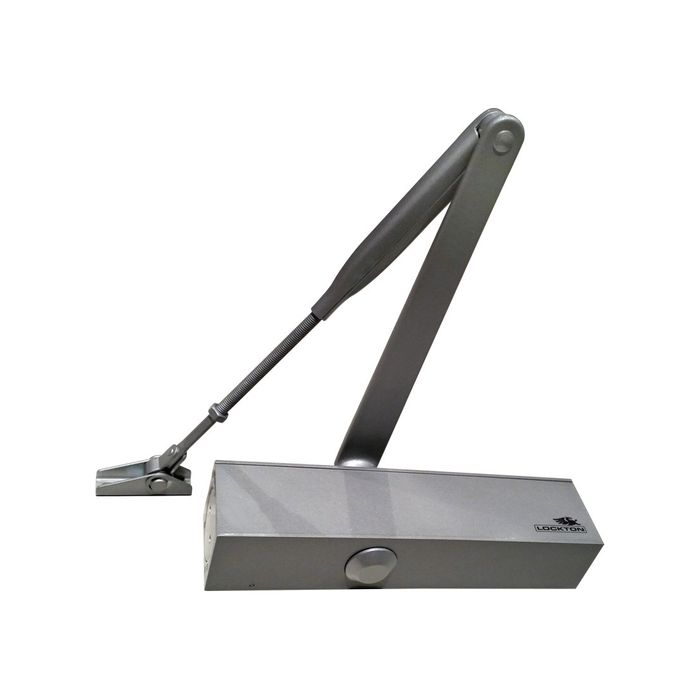

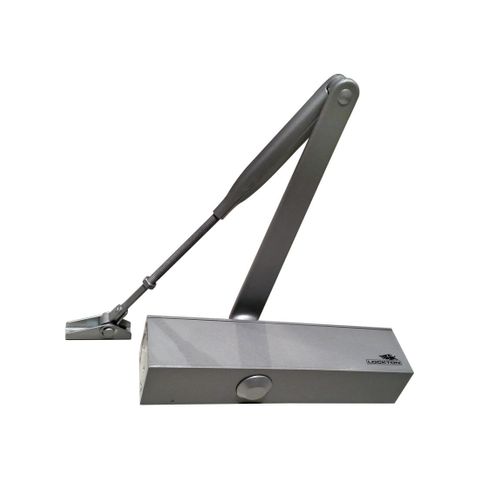

The LOCKTON Art. SGDC165-S Rack & Pinion Door Closer.
PRODUCT SPECIFICATION
- Rack & Pinion operation
- Non-handed
- Delayed action function between 180° - 65°

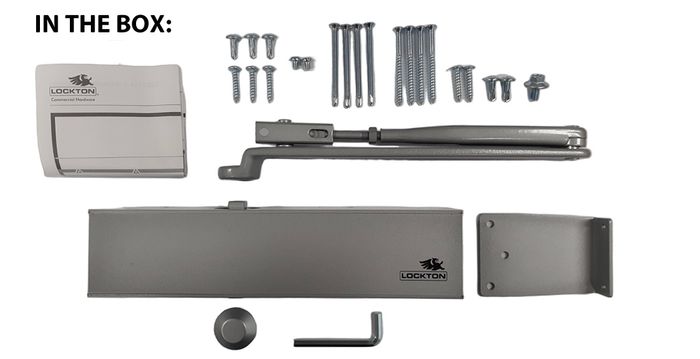

- Comes with Standard arm
- Parallel Arm Bracket
- Mounting hardware
- Adjustable Backcheck
- Simple to read installation instructions
- Can be fitted with optional Hold Open Arm (please see RELATED PRODUCTS)
- Closing range 180° - 15°
- Latching speed range 15° - 0°
- Suitable for door sizes 2-6 adjustable on door with Hex Key
- Size #2: Door width of 850mm & Weight of 40kg
- Size #3: Door width of 950mm & weight of 60kg
- Size #4: Door width of 1100mm & Weight of 80kg
- Size #5: Door width of 1250mm & Weight of 100kg
- Size #6: Door width of 1400mm & Weight of 120kg
- 10 Year Warranty (*)
- Fire Rated AS1905, As1530
- Tested & certified to BS EN 1154:1997
- MADE IN TAIWAN
