LOCKTON

'6000 Series' LEVERSET - DOUBLE CYLINDER SET (70mm B/Set)

Art ID:
EU6011-KD

Description

PRODUCT DESCRIPTION

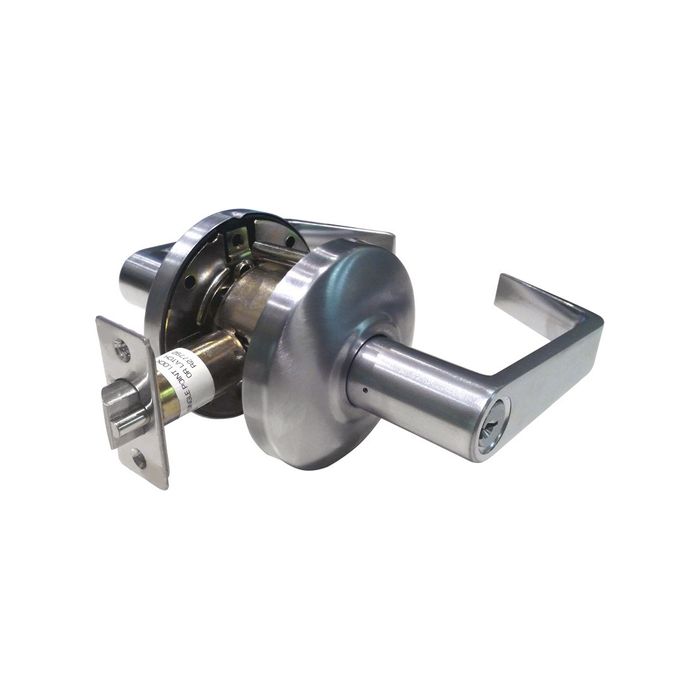

The LOCKTON EU6011 'Double Cylinder' Leverset w/ 70 mm Backset.

PRODUCT SPECIFICATION

  • 70mm Backset, Cylindrical Latch
  • 2 x 6 pin C4 PD Cylinder
  • Cylinder Profile: C4 (LW5)
  • 2 x Keys Per Lockset
  • Tested to meet Grade 2 specification of 400,000 cycles
  • Accepts most restricted key systems
  • Door thickness - 35mm to 51mm
  • Door Prep - 54mm diameter cross bore
  • Assembly Screw Size: M8 x 40mm
  • Standard "T" Strike'

CERTIFICATION & WARRANTY

  • Certified AS:1905
  • Fire rated
  • 5 year warranty
