LOCKTON

'E-Series' (Euro Narrow Leverset) SMART DOOR LOCK ( Sliding Door) *Silver*

Art ID:
ELEV36-SIL-S20
Art ID:
ELEV36-SIL-S28
Art ID:
ELEV36-SIL-S35
Art ID:
ELEV36-SIL-S45

Add To Cart

Description

PRODUCT DESCRIPTION

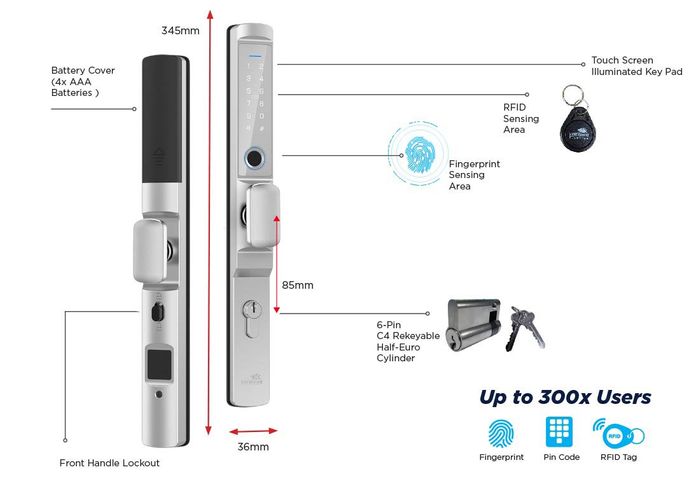

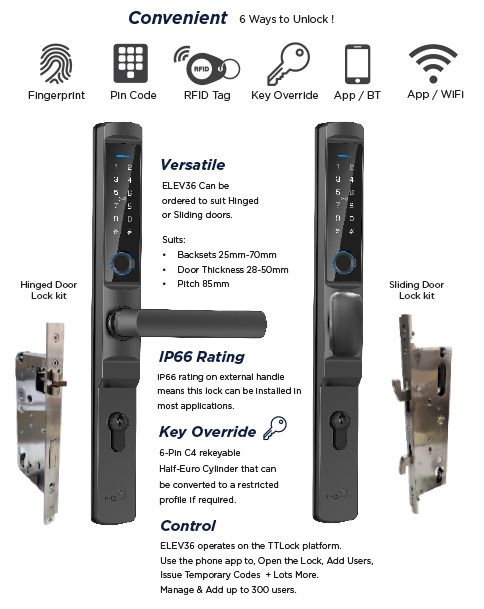

LOCKTON 'E-Series' Narrow Leverset Smart Door Lock with Fingerprint, Digital PIN Code, RFID Tag and Mobile App functionality.

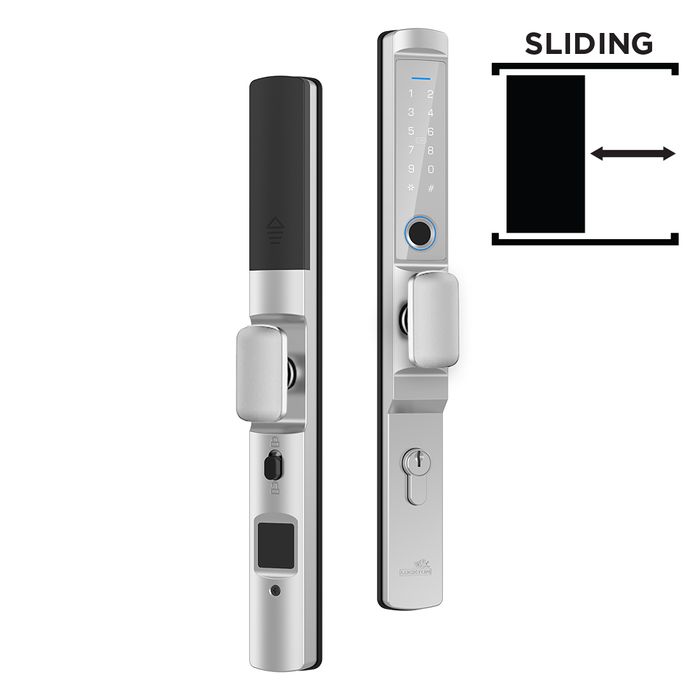

  • Designed for Sliding Door installations
  • The ELEV36 - Smart Euro Mortice Lock has a single throw two point locking mechanism to suit most sliding door locks

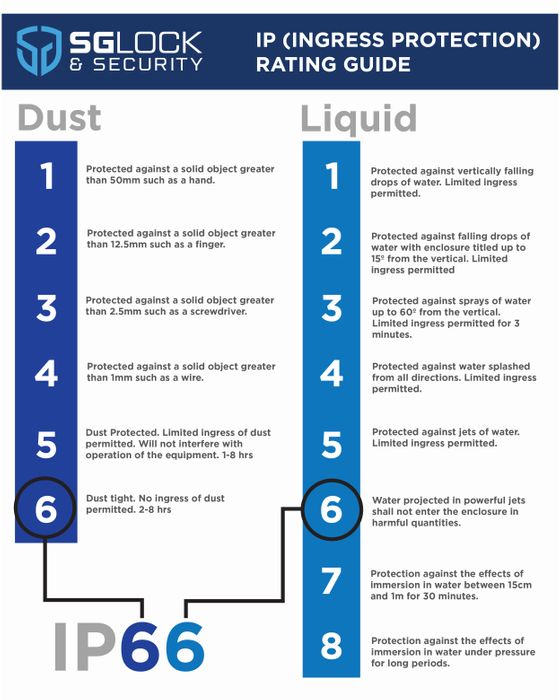

  • IP66 Rating on external handle means this lock can be installed in almost any application
  • Key Override via 6-Pin C4 Rekeyable Half Euro Cylinder that can be converted to restricted profiles
  • Lock is available in multiple backset sizes (20-45mm) to suit most installations
  • Step by step instructions ensure ease of installation and operation
  • Easily Use and Manage the lock via TTLOCK Phone App. Open the Lock, Add Users, Issue Temporary Codes and lots more
  • Add up to 300 x Users
  • Fingerprint sensing area is perfectly located within proximity of the handle to naturally read a thumb print for quick entry
  • Optional G2 & G3 Gateway accessories allow for remote access and control of lock via internet
  • Lock has Art. ELEV36-SLHD-SIL supplied but not fitted

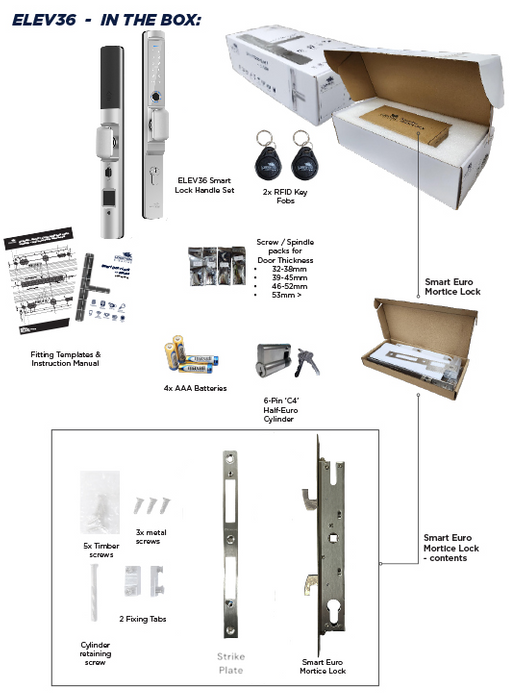

Lock is supplied with the following:

  • 1 x ELEV36 Smart Lock Handle Set
  • 1 x Art. ELEV36-SLHD-SIL Set
  • 2 x RFID Key Fobs
  • 4 x Screw/Spindle Packs for varying door thicknesses
  • 4 x AAA Batteries
  • 1 x Smart Euro Sliding Mortice Lock (ordered to desired backset from dropdown)
  • 1 x 6-pin C4 Half-Euro Cylinder
  • 1 x Fitting Template
  • 1 x Instruction Manual

PRODUCT SPECIFICATION

  • Finish: Silver
  • Dimensions (L x W): 345 x 36mm
  • Pitch: 85mm
  • IP Rating: 66
  • Lock Backset range: 20 - 45mm
  • Suitable door thickness: 28 - 50mm
  • Spindle Size: 8mm
  • Handle Projection: 30mm
  • Handle Height: 58mm
  • Handle Width: 30mm
  • External Handle protrudes 46mm from door
  • Power Supply: 4 x AAA Alkaline Batteries
  • Battery Life: Approx. 10,000 openings
  • Safe Working Temperature: -20°C to 50°C
  • 3 Year Warranty (*)
